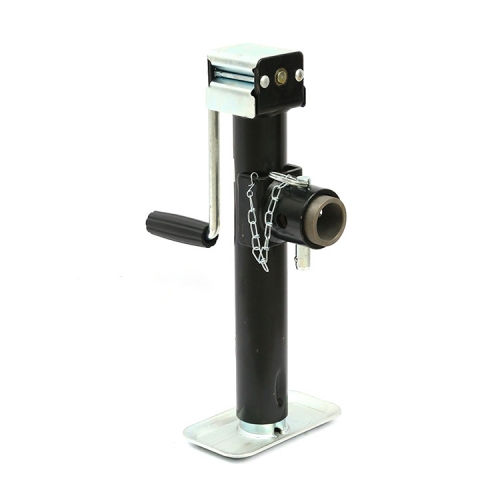

5000lbs Sidewind Pipe Mount Swivel Trailer Jack
 Click to enlarge |
|
5000lbs Sidewind Pipe Mount Swivel Trailer Jack
1.Basic Information :
Specs:
●Mounting height
o10.45" (Close)
o20.45" (Extended)
●Travel: 10”
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Foot size: 190*100mm
●Mounting sleeve dia.:
oInner: 2"
oOuter: 2-1/2"
●Handle radius: 8"
●Lift capacity: 3,000 lbs
●Support capacity: 5,000 lbs
Features:
●Includes locking pin and chain assembly
●Pipe-mounting designing is very convenient to use
●The chain on the locking pin ensures that the Jack is not lost during operation.
●The surface of the product is galvanized, with good rust resistance
●Designed with oil nozzle, can be done when needed to fill lubricating oil
●Weld-on installation with included 2” raw male welding sleeve.
●1-year warranty
