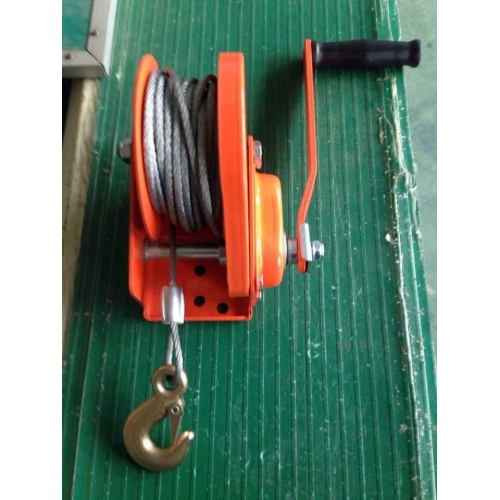

Hand winch with automatic brake
 Click to enlarge |
|
1.basic information
| Item NO | Working pulling (LBS) | Test load (KN) | Gear ration | Net weight(KGS) | Packing (Volume) |
| SN-D1200 | 1200lbs | 8KN | 4.2:1 | 3.7(KGS) | 16X16X22CM |
| SN-D1800 | 1800lbs | 12.13KN | 4.2:1 | 3.7(KGS) | 35X20X23CM |
| SN-D2600 | 2600LBS | 17.64KN | 10:1 | 10.1(KGS) | 35X24X24CM |
2.Feature
lCapacity:1200/1800/2600LBS
lPositive load-actuated brake can hold the load in any position.
lCompact, light-weight and rugged construction.
lGears and brake are fully covered to prevent dust, dirt and rain contamination.
lVery low operator effort is required for easy operation.
lUniversal mounting base.
lPaintin finish or zinc plated finish both ok .
