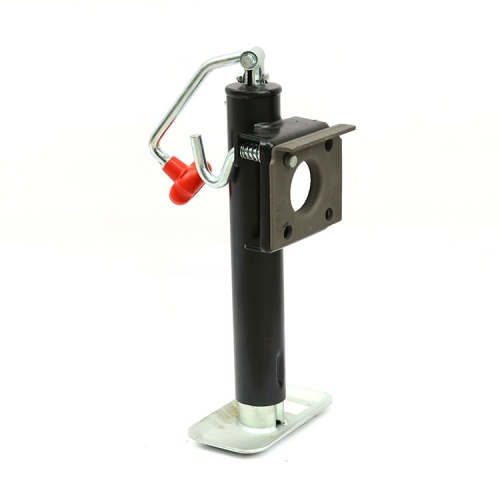

2000lbs topwind 10" lift Flange Jack

2000lbs topwind 10" lift Flange Jack

1.Basic Information :

Specs:

●Mounting height (from bottom of foot to center of mounting plate):

o11.22" Retracted  /  21.22" Extended

●Travel Height: 10"

●Outer tube dia.: 2-1/4" (Φ57mm)/  Inner tube dia.: 2" (Φ51mm)

●Footplate dimensions: 7.5" long x 3.95" wide (190*100mm)

●Mounting bracket dimensions: 5" x 4.25"

●Handle radius: 6.8"(171.5mm)

●Lift capacity: 2,000 lbs

Features:

●High quality steel material provides higher performance

●Spring-loaded locking pin is very convenient to operate, pulling up and down to complete the operation process.

●Our spring-loaded locking pin is 1/2 " diameter, which is larger than other manufacturers

●Our mounting bracket is reinforced in order to provide more strength

●Black powder coating of Outer tube, zinc of inner tube, foot and handle kits

●Foot size is reasonable, which is not easy to sink in the sand

●There are corrosion resistant nozzles on the outer tube, which can be filled with lubricating oil as required

●Weld-on mounting bracket included.
