1500lbs dual wheel Boat Trailer Jack

1500lbs dual wheel Boat Trailer Jack

1.Basic information :

Specs:

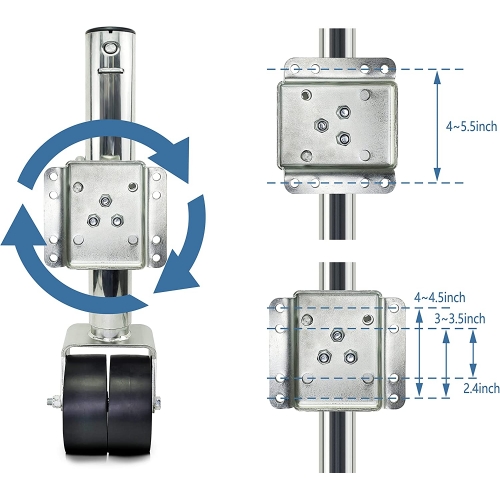

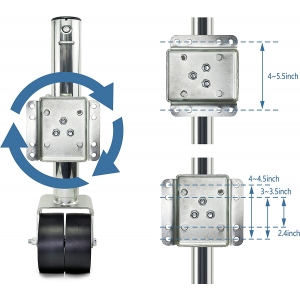

●The size of mounting frame is limited between 4 "and 6"

●Mounting height (measured from center of bracket to bottom wheel)

o12.59” Retracted

o22.59" Extended

●Mounting height (measured from top of Jack to bottom wheel)

o 25.20” Retracted

o 35.20" Extended

●Travel: 10"

●Outer tube dia.: 2-1/4"

●Inner tube dia.: 2"

●Dual-wheel dimension: 5-3/4" diameter x 4" wide

●Handle radius: 6.0"

●Lift capacity: 1,500 lbs

Features:

Wheel jack is primarily designed to move trailers or equipment over short distances, such as from warehouse or by near sea.etc.

●New designed of four bolts to hold the mounting plate to increase load bearing capacity

●A 1/2 "diameter spring-loaded pin provides greater loading capacity and stability

●The inner tube with wheels can rotate 360 degrees, allowing the trailer to travel in different directions

●The sidewind handle is plastic-coated, more comfortable and durable.

●The clear zinc surface provides high quality anti - rust treatment

●Mounting bracket and hardware included
