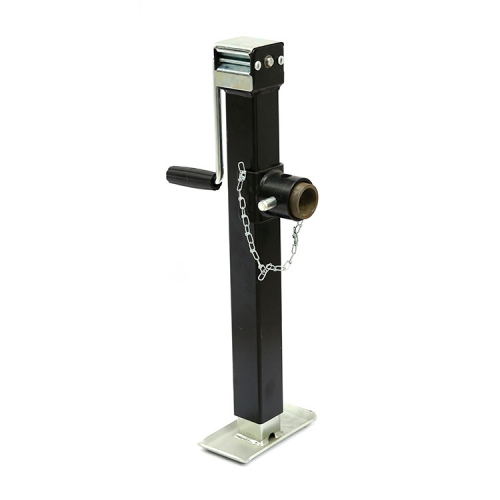

7000lbs sidewind square tube Jack

7000lbs sidewind square tube Jack

1.Basic Information :

Specs:

●Jack height (from bottom of foot to center of pipe mount):

o14-1/2" Retracted

o29-1/2" Extended

●Total lift: 28-1/2"

oScrew travel: 15"

oDrop leg travel: 13-1/2"

●Lift capacity: 7,000 lbs

●Support capacity: 8,000 lbs

●Outer tube width: 2-1/2"

●Inner tube width: 2-1/4"

●Footplate dimensions: 7-7/8" long x 5-7/8" wide

●Handle radius: 8"

●1-Year warranty

Features:

●Tubular swivel design lets you twist jack up for storage, down for use

●Square jack provides more side-load capacity than round-tube jacks

●Belly band welded to the outer tube provides extra strength

●Side wind handle has zinc finish for attractive look and rust resistance

●Drop leg allows for increased lift and saves time when raising or lowering

●Black painted outer tube

●Zinc finished inner tube and footplate for corrosion resistance

●Welded-on footplate minimizes sinking in soft ground
