3500LBS Trailer Tongue Coupler ,2x2"
 Click to enlarge |
|

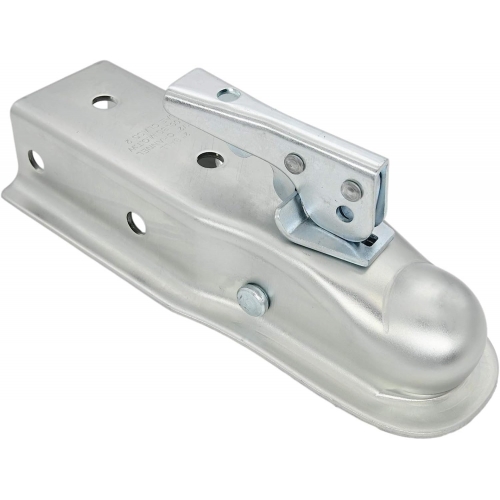

3500LBS Trailer Tongue Coupler
Specs:
●Ball size: 2"
●Channel width: 2"
●Overall dimensions: 10-3/4" long x 3-1/2" wide
●Pin hole diameter: 5/16 "
oMinimum span needed for pin or pin lock: 5/8"
●Distance between mounting holes (center to center): 3-1/16"
●Weight capacity: 3,500 lbs
Features:
●Channel Coupler can be used with a jack to raise, lower or move the trailer to proper position
●Provides connection point for hitch ball
●Trigger latch allows for safe and easy coupling and uncoupling
●Pull trigger and pull up on latch to open ball socket
●Sturdy steel construction
●Durable zinc finish provides superior corrosion resistance
●SAE J684 certified
●Bolt-on installation
●Hardware not included
Warning：
This latch system features an easy to use trigger. When pulled, the latch lifts straight up, unlatching the coupler from the ball.
A coupler is the connection point mounted on the trailer which connects the trailer to the vehicle. When replacing a coupler there a few things that you have to know.
---First, what is the hitch ball size for the coupler.
---Secondly, what type of trailer do you have (Straight Tongue or A-Frame)?
--Lastly, what is the Gross Trailer Weight of the Trailer. These are the basic questions for finding the correct coupler replacement.
